OwlTree Plate for Immaculate Air Filter
- Creator (as listed at the source)
- MattyJeepers
- Licence
- CC BY-NC-SAThe licence is listed by the source marketplace. SliSearch does not verify it.
- File types
- The marketplace does not list the file types.
- Pricing
- Free
- Published
- Category
- 3D Printer Parts
- Likes
- 3
- Downloads
- 7
Overview
I have 12V fans and I'm old and I don't want to learn about buck converters and I don't wanna open the door to change the fan speed. All credit where credit is due: Immaculate Air Filter for K2 Plus Ubigene's original Immaculate Air Filter for K2 Plus is an extremely awesome design, so I just did a little remix of one tiny part of it so that I could use a 12VDC wireless PWM controller from OwlTree: To control three Noctua fans: Powered by a 65W laptop USB-C power supply: I drilled a hole in the back plate of the printer, by the existing power cable socket. Some day I'll probably put a grommet in the hole, but for now I just carefully snaked the USB-C power cable through the hole and into the main printer cavity. A note about the retainer for the PWM controller: if it's loose, add some painter's tape to it. I measured and guessed at a tolerance based on some new filament so it's not perfect, but I printed the whole thing in PETG and it's good enough for me. So this little guy fits just snug enough to not fall out while I'm swinging the entire assembly into place: Also if you use stainless mesh for your prefilters you can just use a soldering iron to melt it into the plastic and not worry about glue.
Print this model with Slicience
- Download the model from the source page.
- Upload the file to Slicience and get a quote with Prinnu.
Similar models
Chosen by shared tags first, then category. Each one links to its own marketplace.
Easy to Print Air Purifier -- for inside your enclosureHOLD UP: A few people smarter than me commented and noted that this doesn't get rid of UFP's (ultra fine particles) This respirator cartridge has a P100 filter in it but some of the super fine particles will still get through.
AirManagerV2 recirculating air filter for 3d printing enclosureAfter I saw the video from Zortrax about their HEPA Cover Filtering Device (see link below) I think “for me” a HEPA and active carbon filter is plenty sufficient for keeping the air clean in my 3d printing enclosure.
120mm HEPA Air Filter for LACK Enclosure
Air Purifier for 3d PrintersCleans, scrubs, filters, and purifies the air inside a 3d printer that prints with ABS. This 3d printed activated carbon recirculating air filter removes all toxic fumes.
HEPA Air Filter for LACK Enclosure
Ikea UPPATVIND Activated Carbon ModI upgraded the IKEA UPPÅTVIND air purifier to make it more useful for 3D printing. The stock filter works well for particles, but it doesn't do much for VOCs and odors.
H2 Modular HEPA & Activated Carbon Filter SystemDesigned around a larger, more readily available 125x125x30mm dual stage carbon and HEPA air filter, this system breathes better than other "Vento" style filtration system and readily allows for fume extraction and...

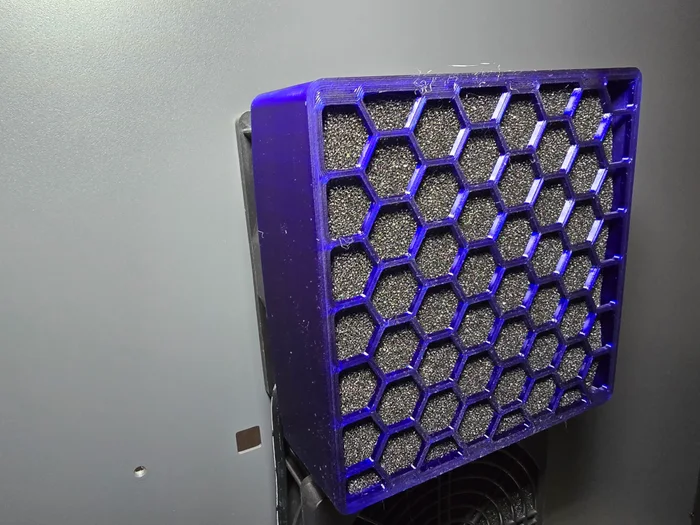

HEPA Filter Case for Sovol SV08 MAX – Screwless MountHEPA Filter Case for Sovol SV08MAX This is a clean, effective, and easy-to-print HEPA filter enclosure designed specifically for the Sovol SV08MAX.
