20:1 cycloidal gearbox (for 5010 motor)
This is a 20:1 cycloidal gearbox. I printed every part in PLA, but for long time use it might be better to use PETG.
- Creator (as listed at the source)
- mattiemateo
- Licence
- Open Community License v1.1Stated at the source marketplace; SliSearch does not verify licences.
- File types
- 3MF STL
- Pricing
- Free
- Published
- Category
- RC & Robotics
- Likes
- 6
- Downloads
- 20
Overview
This is a 20:1 cycloidal gearbox.
Printing
I printed every part in PLA, but for long time use it might be better to use PETG.
The rotors can be printed with 15% infill and 0.15mm layer height for smoother contact surfaces.
Read the full description
Output should be printed with 40% infill and 6 perimeters to ensure strength of the pins.
Ring can also be printed with 15% infill and 0.15mm layer height for smoother contact surfaces, but I did use some more perimeters for impact resistance of the outer pins.
Bottom lid is a simple part that can be printed with 5% infill on 0.20mm layers .
Motor enclosure is an optional part. If you want to use it with a flycat 5010 motor you should print it. I used supports on bed only.
Part 17 is used to mount a magnet to the motor shaft for the encoder.
Part 18 is used to mount the AS5048A Magnetic Encoder.
Input A , Input B and Motor connector all need to be printed with 60% infill to ensure the shafts don't break under load.
Assembly
You can see how to assemble when you open the 3MF file in a CAD program like fusion360 or Onshape.
Hardware
Encoder
Flycat 5010 motor
20x32x7 Bearings
M3x40mm bolts
M3x25mm bolts
M3 square nuts
I made this model in my own time and paid for all the hardware myself. The links above are affiliate links I earn a little with. Help me out by using these links or feel free to buy the hardware somewhere else.
If you run into any problems please let me know in the comments, I will try to help you.
Print this with Prinnu
- Download the model file from the source page. SliSearch moves no files.
- Upload the file at slicience.com/quote. Prinnu quotes it in minutes.
Similar models
Chosen by shared tags first, then category. Each one links to its own marketplace.
PNX RAX-03 – Open-Source 5-Axis 3D-Printed RobotPNX RAX-03 – Open-Source 5-Axis 3D-Printed Robotic Arm PNX RAX-03 is my third-generation experimental robotic arm platform, designed around FDM 3D printing, NEMA 17 stepper motors, custom gearboxes, and replaceable printed mechanical...
3D Printed Linear ActuatorVideo showing assembly with hardware list in the description:
PNX RAX-03 – Open-Source 5-Axis 3D-Printed Robotic ArmPNX RAX-03 – Open-Source 5-Axis 3D-Printed Robotic Arm PNX RAX-03 is my third-generation experimental robotic arm platform, designed around FDM 3D printing, NEMA 17 stepper motors, custom gearboxes, and replaceable printed mechanical...
Nema 17 Cycloidal GearboxCycloidal gearbox for a Nema 17 stepper motor.
3D printable high torque servo/gearbox version 2
3D Printed Linear Actuator - Linear motionBefore we start as you know, these projects take a lot of time and effort. If you'd like to support my work, you can join my YouTube channel or use the Super Thanks button on my videos.
Linear actuator with stepper motor from cd/dvd optical drive[UPDATE] There is my upgraded model with integrated limit switches: In most cases all the parts required to build this can be found in computer optical drives, but I also added a version with linear bearings instead of brass bushes(not all...
Spherical Parallel Manipulator
3D-printable High torque servo/gear reduction
Twist & Extend Ultra (v2)Product Assembly Tutorial (Video) : A fully 3D-printable, Ultra Fast 3-stage telescopic actuator designed for makers, hobbyists, and robotics enthusiast.
Optical drive linear actuator V2 - with integrated limit switches// Here you can find my new project which also use parts from optical drive This is upgrade of my previous version I posted here.I also added second actuator without external shaft.These models differs from the previous version in that...
3D Printed Planetary Cycloidal GearboxI designed this gearbox after reading some papers online. A video showing the gearbox being built and tested can be found here: More information as well as a hardware list can be found in the description of the...
Linear Servo Actuator (SO POWERFUL)Before we start as you know, these projects take a lot of time and effort. If you'd like to support my work, you can join my YouTube channel or use the Super Thanks button on my videos.
Gearbox for Battlebot or Sumobot motor RS755 and RS775Reduce high speed from the motor (DC 24V: 34000 rpm). Compatible Models: 755,775. Reduction aprox.: 12,7:1 Torque With DC Motor 775: 20kg.cm It will be use on Robot Sumo. Battlebot. It was printed with ABS around 5 hours.
Mini syringe pump from optical drive partsThis can be used for liquid measurments/precision feeding, its not medical or cyber junkie equipment My another project with optical drive parts...
3D-printable high torque strain wave gearbox - harmonic drive
3- Speed Gearbox / TransmissionBefore we start as you know, these projects take a lot of time and effort. If you'd like to support my work, you can join my YouTube channel or use the Super Thanks button on my videos.

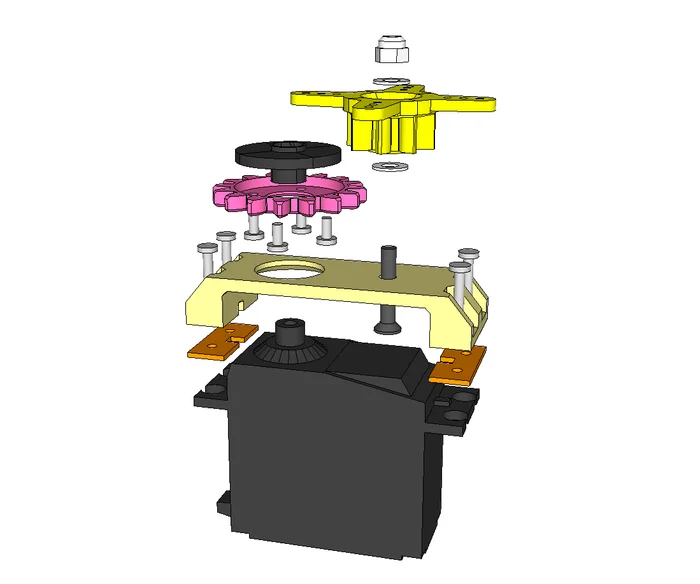

Dasaki compact servo 1:2 (2x) multiplier gearbox1:2 multiplier for standard sized RC servo. My purpose was to get more speed from a cotinuous rotation servo, but it can be used also to get twice as much angle (for example to get 360 from a 180 degree servo for a pan-tilt unit).
Rack & Pinion Linear Actuator Servo Joint Module *Tiny_CNC_CollectionThis is a modular hobby servo Linear Actuator joint assembly. It is part of the Tiny_CNC_Collection of parts designed to facilitate entry into robot building fun! All parts print without supports or post processing!
High Torque Modular Gearbox- 3...125 : 1 Gear RatiosBefore we start as you know, these projects take a lot of time and effort. If you'd like to support my work, you can join my YouTube channel or use the Super Thanks button on my videos.

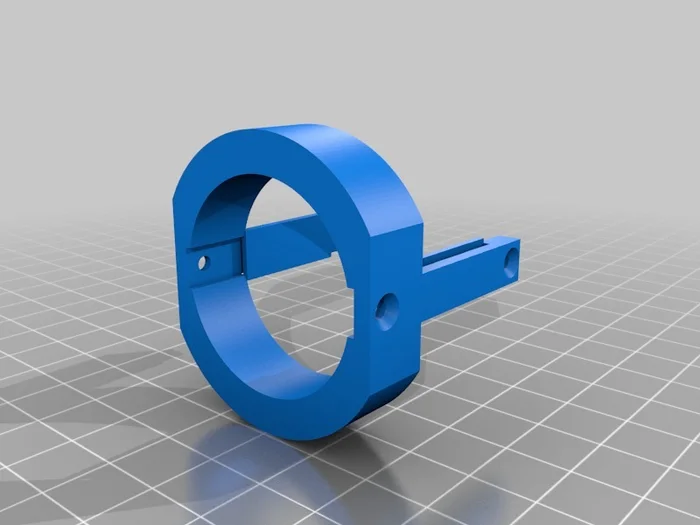

Hacking a Harbor Freight 4.8V ScrewdriverIf you take apart a Harbot Freight Tools 4.8V screwdriver you'll find that it has a pretty decent 2-stage planetary gear drive.
