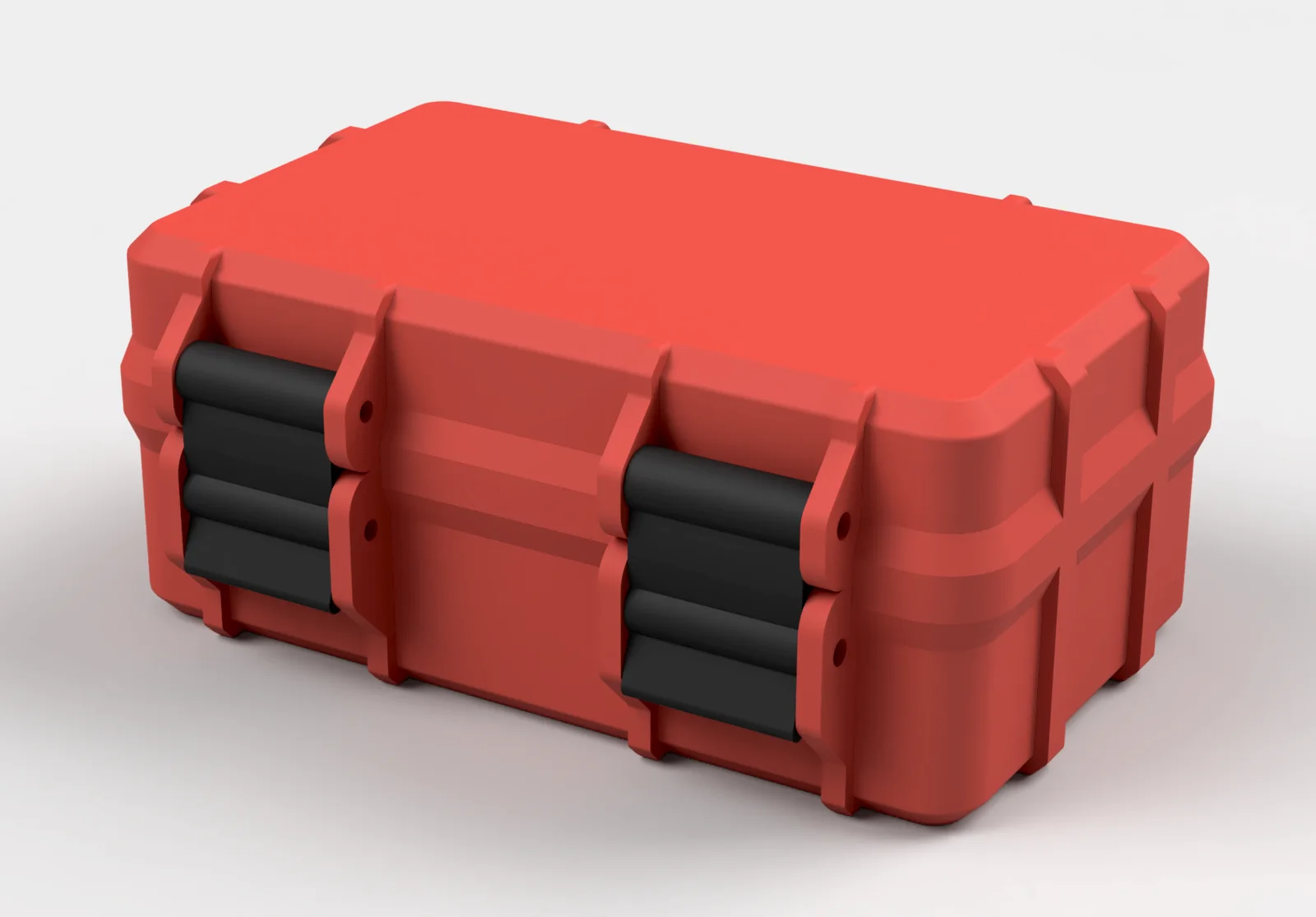

Rugged Box (Parametric)
The design is based on the " Tool box parametric " by Yanev and provides some more options to parameterize it in Fusion 360.
- Creator (as listed at the source)
- Whity
- Licence
- Creative Commons — Attribution — Noncommercial — Share AlikeStated at the source marketplace; SliSearch does not verify licences.
- File types
- F3D STEP STL
- Pricing
- Free
- Published
- Category
- Organizers
- Likes
- 35,754
- Downloads
- 163,848
Overview
NO, THERE IS NO WAY TO GET A LICENSE TO SELL THE BOX COMMERCIALLY.
MY DESIGNS WILL ALWAYS BE FREE FOR NON-COMMERCIAL USE ONLY.
PLEASE STOP ASKING!
The design is based on the " Tool box parametric " by Yanev and provides some more options to parameterize it in Fusion 360.
Read the full description
Threaded Screw Fidget Toy 01
Round Container 02 - Grooves
Round Container 01 - Knurled
Magnetic Tea Bag Dispenser
Customizable Can Dispenser
Support my work
For non-Prusa parts and filaments, check out 3DJake International , UK , Germany , France .
I'll get a small cut of any order you fulfill using these links (at no additional cost for you 😉).
If you want to order a Prusa printer and earn some Prusameters (I will also get some), you can use my referral code " " at checkout or click one of the following links
(the code only works for the first order of each printer model):
| CORE One | CORE One Kit | MK4 | MK4 Kit | MINI+ | MINI+ Kit | XL | SL1S | SL1S+CW1S |
Planning to buy a professional fiber or UV laser? Check out ComMarker and get a discount on your first order (must be a new account and the first order placed within 30d. Referral code is part of the link).
Remixes
Some of my own remixes:
Modular Slots - Shallow height (single row version)
Modular Slots - Shallow height (multi row version)
Modular Slots - Normal height
Horizontal Inserts
GoPro 9/10/11 Case
GoPro 8 Case
Brother TZe Label Tape Cartridges Box
18650 Battery Storage Box for 50 Cells
Box for Drill Handle and Collets
Box for Radius Gauges
Revopoint Mini Case
Fluke Multimeter Case
Docreate Gear30 Spot Welder
GEPRC TinyGO 4K Drone
DMT 6" Diamond Whetstones & Holder Storage Box
Filament Swatches Storage Box
TOOLTOP ET693C Thermal Camera
Important
The current STL files in the download section are all V1 only. If you want the newer design, use the Fusion 360 file and customize it as needed (that's recommended anyway, as there are many parameters to adjust)
Screws
I like these screws which have a nice round head:
Allen hex socket button head screw
Or, if you want no screw head at all, which I personally like even more:
Hex socket set screws
Note: I recommend the stainless steel ones. The blackened ones are oily and have to be cleaned.
Updates
24.08.2022:
V2 release:
The front and back ribs are changed a bit to not have the full depth for the full height (see V2 details below). Looks much nicer like this (but V1 is still available)
The offset of the chamfer for each of them is configurable individually (…RibChamferOffset Parameters). This way you can make the latch easier to open by lowering the offset, or make it less likely to open by accident by increasing the offset and cover the latch completely.
If you wish you can now increase the size of the hinge to make it more sturdy (but I would not recommend it. It's more a hack…)
The width of the outer parts of each hinge can now be set to make it more sturdy (only useful when using screws longer than 25 or 30 mm)
18.08.2022:
Added “FLUKE Edition”
28.08.2022: Moved to a separate model:
Changes made
All parts in one F360 file
Contains a seal to print in TPU (will not make it 100% water tight)
Additional parameters:
The position of the latches and ribs (distance from the sides)
The diameter and length of the screw (to support different sizes / latch widths)
The inner chamfer size
Separate parameters for the widths of the ribs on the side and for the hinges/latches
Several tolerances to fine tune it for your printer
To assemble it you need 6 screws in total. For the provided STL files you will find the correct size in the folder names.
V2 Release
Here you see the main design change of the second version (V1 on the left, V2 on the right):
Print this with Prinnu
- Download the model file from the source page. SliSearch moves no files.
- Upload the file at slicience.com/quote. Prinnu quotes it in minutes.
Similar models
Chosen by shared tags first, then category. Each one links to its own marketplace.
New Rugged Box (Parametric) – Enhanced Small Sizes & Variable number of Hinges/LatchesAbout this remix The Rugged Box (Parametric) by Whity is an excellent, robust design that is particularly well-engineered.

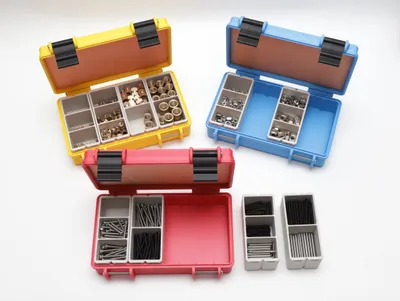

Rugged Box with Modular Slots (Parametric) - Shallow heightThe rugged box and inserts are based on my parametric “ Rugged Box ”. The size of the inserts (and the box itself) can be modified in Fusion 360 (f3d file available in the files section).
