openPrimerFiller - DIY primer filler
- Creator (as listed at the source)
- AmmoMike83
- Licence
- Creative Commons - Attribution - Non-Commercial - No DerivativesStated at the source marketplace; SliSearch does not verify licences.
- File types
- STL
- Pricing
- Free
- Published
- Category
- Hobby
- Likes
- 380
Overview
Primer filler for Hornady & Dillon pickup-tubes. thanks to MA-Gladiator from wiederladeforum.de for inspiration! *VIDEOS* *PARTS NEEDED* - Speedcontroller with integrated on/off switch - 9v battery clips - Motor or similar. Max motor diameter 25mm! - M5x25 screw (25 is thread length) - 2 x M2x10 screw to fix the drop tubes to the adapter - 4.7mm drillbit for small primer adapter - 5.7mm drillbit for large primer adapter - 9v battery *INSTRUCTIONS* - print upper and lower base - print small adapter and drill out the hole with a 4.7mm drillbit - print large adapter and drill out the hole with a 5.7mm drillbit - glue in a M5 hex nut into upper base - print cover with a translucent material - if you don't have a vibration motor print the imbalanced weight and glue in onto your motor's shaft For Hornady pickup-tubes cut off the pickup end by 8 mm. File it and give the inner tube a gentle (!!) taper! *UPDATES* UPDATE 2021/07/26 - link renewal UPDATE 2019/02/21 - added new upper base version with enlarged grooves UPDATE 2019/02/13 - did some design changes to the primer tube mount, so new upper_base, new adapters and new covers - added screw hole to the primer tube adapter mount, if you wish to fix that part. UPDATE 2019/02/08 - project start
Print this with Prinnu
- Download the model file from the source page. SliSearch moves no files.
- Upload the file at slicience.com/quote. Prinnu quotes it in minutes.
Similar models
Chosen by shared tags first, then category. Each one links to its own marketplace.
Primer Flipping TraysIMPORTANT: Get the latest updates for this model here on PrusaPrinters. In 2021, all updates and uploads of new models were moved to PrusaPrinters, of course still free and under the same conditions...
Powder Funnel (5.56/.22-250)Just getting into reloading! Seems to be necessary to push beyond 1/2 MOA and is MUCH cheaper to shoot my precision rifle's caliber: .22-250 Remington, if using reloads.
Open source bullet feeder / collator - 223/556 (Dillion 650, Hornady L&L etc)Sept2022 Minor typos corrected. December 2018 Seems to work OK. If you have issues drop me a comment on the problem. Source code files are provided allowing you to mod parts to suit your need. Hence I will not be re-designing for you.
Rifle Case FeederCurrently working on a completely different design and won’t be making any updates to this one. This is a remix of GolluB's case feeder remixed to work for Rifle Cartridges too.
Powder Measure Kit With StandFull set of reloading scoops matching the Lee Powder Measure Kit. These scoops were designed to be accurate and easy to print. Print them face down with support ONLY on the scoop to ensure dimensional accuracy.
Lee reloading die retaining nut wrenchETA 9/12/2020: I saw a similar tool sold by an online reloading site, for about $4 + shipping, and figured that I could just make my own, so I guess this is a "remix".
Primer Flipping TrayReloading primer flip/flipping trays. The flip tray comes in three sizes: 50, 100 and 125mm (2", 4" and 5").
Lee Classic Turret Press Brass KickerBrass Kicker for the Lee Classic 4 Hole Turret Reloading Press. Snaps in between the right two posts, easiest to install from ram side with ram at bottom of stroke.

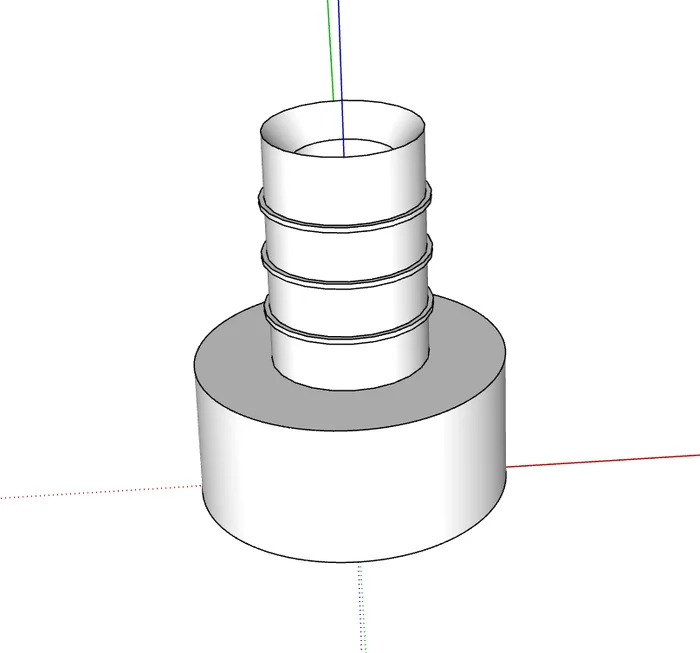

Bottle cap/adapter for PETG bottle and 1/2" ID tubeBottle cap/adapter for PETG bottle and 1/2" ID tube. I use this for collecting spent primers on my reloading press with a 1/2 inner diameter tube (standard for collectors from primercatcher.com)
