Ender 3 Filament Guide w/ 608 Bearing
I created this filament guide to cut back on my top-mounted spool from unraveling so much when the extruder or print head jerked on the filament.
- Creator (as listed at the source)
- ScuzzBrush
- Licence
- Creative Commons — Attribution — NoncommercialStated at the source marketplace; SliSearch does not verify licences.
- File types
- STL
- Pricing
- Free
- Published
- Category
- Creality Parts & Upgrades
- Likes
- 5
- Downloads
- 8
Overview
UPDATE: Added taller guide head with improved guide hole so it lines up better with the DDE, depth wise.
I created this filament guide to cut back on my top-mounted spool from unraveling so much when the extruder or print head jerked on the filament.
Tolerances should fit the 608 bearing well as a press fit.
Rail portion may fit snug, sand the bottom face until it slides smoothly inside the rail. Shouldn't take much at all.
10% infill
PLA
No supports needed
Tips Welcome:
Print this with Prinnu
- Download the model file from the source page. SliSearch moves no files.
- Upload the file at slicience.com/quote. Prinnu quotes it in minutes.
Similar models
Chosen by shared tags first, then category. Each one links to its own marketplace.
Creality Ender 3 V3 SE / KEI redesigned it in Tinkercad for the 608zz bearing.
Filament Guide (Clip) for Ender 3 V3 KE/SEThis is a filament guide to clip in the side of your 3d printer (Ender 3 V3 KE/SE) as seen in the photo. It helps guide the filament for a side spool holder located in the right (can mirror it in slicer for clipping on the left).
Ender 3V3 KE filament guide v30I needed a filament guide to slide onto the top rail of my Ender 3 as I had a top feeding hot end.
Creality Ender 3 S1 Filament Roller GuideThis is the filament runout detection roller guide for the Creality Ender 3 S1 printer as seen in the following video: What you will need: ► QTY (1): M4 socket head screw, anywhere from 6-10mm long will...
Neptune 3 and 4 Swiveling Filament GuideNeptune 3 and 4 Series Swiveling Filament Roller Guide I have created a swiveling filament guide for the Neptune 3 and 4 Pro-Series, as well as the Plus and Max models.
Filament guide - Ender 3 V3 SEWhy turn that spool by 90 degrees?
Creality Ender 3 V3 KE/SE Overhead PTFE Tube GuideReplace your overhead spool holder with a PTFE tube guide to remove the filament weight from the top of your frame
Ender 3 S1 Filament guideA filament guide that is plugged onto the filament roll holder. I use a different runout sensor holder and this did not guide the filament properly.

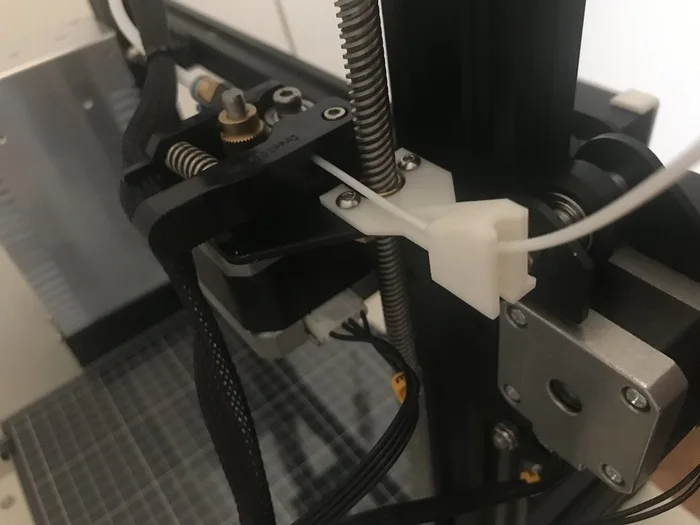

Extruder Filament Guide (Ender 3)This prevents the filament on the ender 3 cutting a line in its plastic extruder. Uses the bolts on the brass z-axis rod holder. Dont over tight it as it can result of your z screw rod to not rotate.
