Heavy Duty Hanger for a wire rack cart or shelf
- Creator (as listed at the source)
- Old-Steve
- Licence
- Creative Commons - Attribution - Share AlikeStated at the source marketplace; SliSearch does not verify licences.
- File types
- STL
- Pricing
- Free
- Published
- Category
- Hobby
Overview
My heavy duty hanger for a wire rack cart or shelf I have a few wire rack shelves and rolling carts and they all seem to share the same uprights. The tubes that support the shelves are 1” diameter steel tubes with indented rings every 1”. I designed a heavy duty hanger for this shelf unit. The first hanger is a shaft collar that will bolt on to the 1” tubular leg. My prints get “elephant’s feet” and I even added a slight internal ring at the bottom. This will index into the grooves that are 1” apart on the tube legs. I used 3mm brass inserts in the shaft collar, with 3mm X 20mm socket head cap screws. I used the old school inserts, they just pull in with no heat. I’m pretty sure either style will work. You could even place a 3mm nut there, but it might be hard to get the screw started. You can find more details about the 3mm inserts I used in my purse holder thing. My wire rack shelf purse holder If you go there you will notice the similarities between the purse holder and this hanger. The hanger is basically a scaled down purse holder but it wasn’t close enough to call it a remix. It is closer to thing Yet Another Test Lead Hanger But it still wasn’t a remix, it was a re-design. The next hanger is the same hanger but it will slip over the wire rack shelf lip instead of bolting to the leg. There is a brim at the bottom of the opening. Trim it away post print. While I was at it I made a third hanger. This one has a flat back. Use some very high bond double sided tape to stick it anywhere. Like the side or front of a tool box. Anywhere flat. I used double sided Gorilla tape. This hanger looks like a scaled down version of my test lead hanger. But it isn’t. You can use these hangers for a variety of uses. Tape measure hanger, anything with a string or a loop. They may be a bit small for test leads. But they seem to work. They are very strong, print one and try it out for yourself. I would not hesitate hanging a $500.00 meter on these hangers. YMMV. I printed these in ABS, .2 layer, 50% infill
Print this with Prinnu
- Download the model file from the source page. SliSearch moves no files.
- Upload the file at slicience.com/quote. Prinnu quotes it in minutes.
Similar models
Chosen by shared tags first, then category. Each one links to its own marketplace.
Strong Hooks - Wall / Under CounterDesign Concept Ideal for mounting on walls, closets, or the back of doors, this strong hook serves as a practical solution for hanging hats, caps, or even other small accessories depending on your necessity. Printing PLA or ABS can work.
Heavy Duty Red Garage Wall HookOrganize Your Space with Ease Transform your cluttered workspace into a highly organized environment with our robust wall-mounted utility hook.
Bike Hook - LargeWall clamp for storing bicycles against all, can be used horizontally or vertically. This clamp is suitable for tire sizes 2.125"- 2.5". The clamp simply screws to the wall.
MW Modular Wall Mount Hanger Hook Universal
Strong Universal HookThe Strong Universal Wall Hook is designed for securely storing larger and heavier items :) Design Deep hook (55 mm) to support larger objects Internal honeycomb structure for increased strength while keeping material usage efficient Clean...

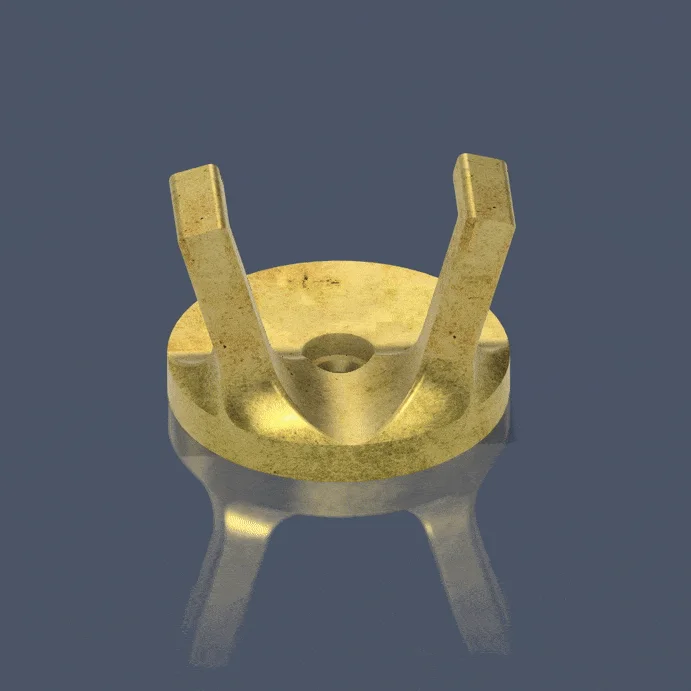

Simple Double HookIntroducing the "Double Hook"—the 3D-printed hook that's simple, stylish, and so strong it could hold your procrastination, if that were physically possible! With not one, but two hooks, it's like a multitasking wizard for your wall.

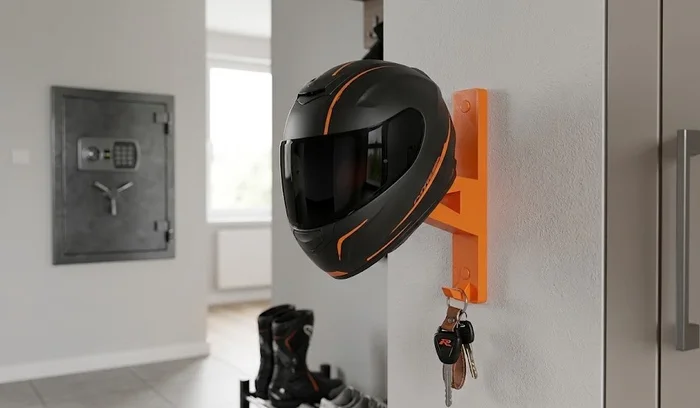

Wall-Mounted Helmet & Key HolderKeep your motorcycle gear perfectly organized and always within reach with this sleek, wall-mounted helmet hanger.
3-Peg Orange Utility Wall Mount Hanger Hook3-Peg Orange Utility Wall Mount Hanger Rack Streamline Your Space with Bright, Practical Storage Keep your workspace, garage, or shed organized and clutter-free with this highly functional 3-peg orange utility wall hanger.

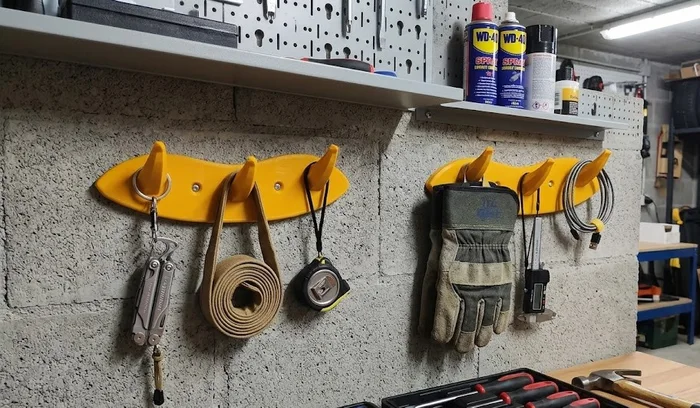

Multi-Purpose Triple Wall HookElevate Your Space with the Ultimate Organizer Are you tired of cluttered workspaces, messy garages, and disorganized entryways?
