Anet A8 FlaXis Bowden
- Creator (as listed at the source)
- 3Displacement
- Licence
- Creative Commons - Attribution - Non-CommercialStated at the source marketplace; SliSearch does not verify licences.
- File types
- STL
- Pricing
- Free
- Published
- Category
- 3D Printing
- Likes
- 160
Overview
INTRODUCTION ----------------------- This upgrade will move extruder motor for bowden setup from top of the frame to the x-axis. The curvature of the tube from x-axis movement will stay consistent no matter what your z-axis height is. This will reduce the flex of ptfe tube thus making filament travel more smoother. BOM ------- 1 x M8 Bolt (40mm min.) 2 x M8 Nut 3 x M8 Washer 4 x M3 12mm Socket Head Cap Screw 2 x M3 20mm Socket Head Cap Screw 6 x M3 Nut 1 x Skateboard bearing (8x22x7mm) SUPPORT -------------- Support only needed on main-base.stl INFILL --------- All parts have been printed with 30% infill ASSEMBLING PROCESS ----------------------------------- Please refer to provided photos for assembling process. CREDIT ----------- The extruder was placed in a SnapFit Bowden Extruder Mount Anet A8 by hachiroku. I remix it and make a base so that M8 bolt can be fit on the rear of the extruder motor. VIDEO --------- UPDATES -------------- 1/1/2019 - Added 45mm-main-base.stl and 45mm-linear-rod-clamp.stl 10/1/2019 - Added 2020-mount-adapter.stl for 2020 aluminium extrusion
Print this with Prinnu
- Download the model file from the source page. SliSearch moves no files.
- Upload the file at slicience.com/quote. Prinnu quotes it in minutes.
Similar models
Chosen by shared tags first, then category. Each one links to its own marketplace.
ULTIMATE ANET A8 GUIDEAfter a little more than a year of many failed prints and broken cooling fans, I have found the best settings and mods for your A8 printer. I now have prints challenging the original Prusa MK3 and other high-end printers.

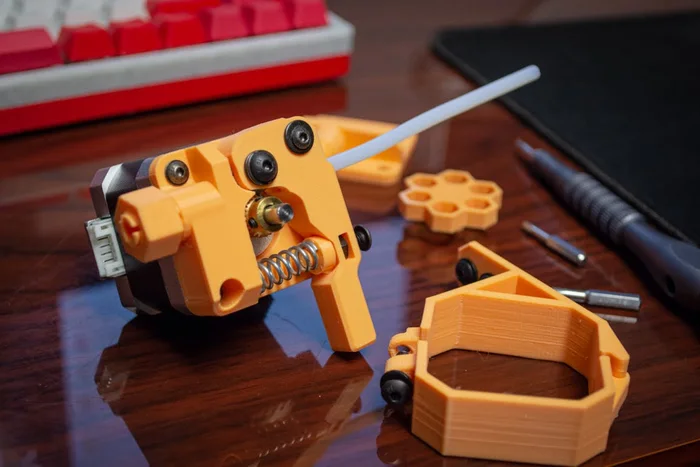

Fedorstruder v2.0
UPDATED! Anet A8 - e3d v6 XtraSolid Support with 60mm fan v2.0After trying every single e3d v6 clamp on thingiverse for my Anet A8, I decided to design my own with custom structure.
Improved Customizeable Anet A8 E3D v6 E3Dv6 Carriage with 40mm Fan Mount
Anet A8 E3D V6 Bowden ~ Direct DriveSwitch between Direct Drive and Bowden easily using this mod. This is a remix of my Anet A8 E3D V6 Direct Drive. The extruder motor mount is now removable with two M4 screw to give a better look when in Bowden mode.

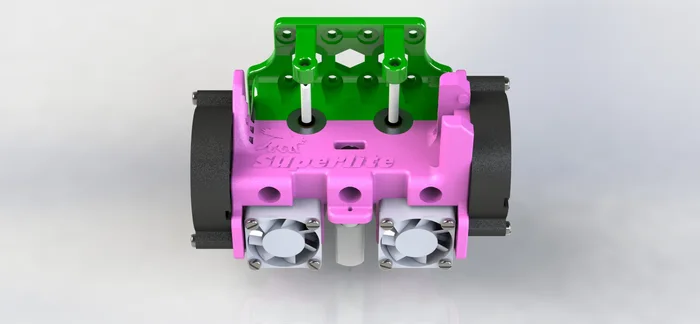

Superlite! Lightweight BL Touch Dual Bowden Extruder Lion Mount for Anet A8 & Prusa i3! *With 60mm Fan Adapter!*So here is the latest re-imagining of this mount! #Summary: - "Superlite" design up to 30% lighter weight than my other mount at same settings! 48% less weight if both are printed at the settings recommended.

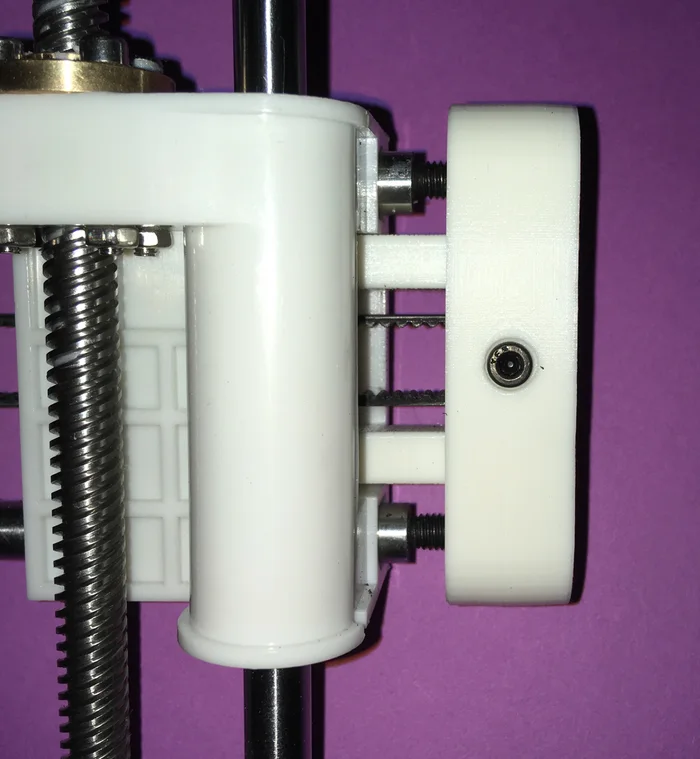

Anet A8 Belt Tensioner X-AxisAnet A8 Belt Tensioner X-Axis This Anet A8 X-Axis belt tensioner has many features that set it apart from the other x-axis tensioners. This design has about 1000hr of print time on it now. It is still working well.
