Neptune 4 Reverse Bowden Upgrade
- Creator (as listed at the source)
- Jacques van Niekerk
- Licence
- Creative Commons — AttributionStated at the source marketplace; SliSearch does not verify licences.
- File types
- STL
- Pricing
- Free
- Published
- Category
- Other Printer Parts & Upgrades
- Likes
- 242
- Downloads
- 1,073
Overview
These brackets allow you to use a reverse Bowden tube to stop the filament from pulling on the extruder and giving inconsistent extrusion. This increased print quality significantly for me.
Designed to be used with either my Neptune 4 filament roller upgrade or an off printer spool holder of some sort.
There is a pilot hole to mount the sensor, but I prefer to have the sensor sit loosely in the bracket as to not over constrain the system.
Hardware required:
3x PC4 M10 Fittings (Thread is actually 1/8" BSP)
2x M5x20 Screws
2x Printable (and included) m5 t-nuts
2x M3x20 Screws
Link for spool holder:
Print this with Prinnu
- Download the model file from the source page. SliSearch moves no files.
- Upload the file at slicience.com/quote. Prinnu quotes it in minutes.
Similar models
Chosen by shared tags first, then category. Each one links to its own marketplace.
Neptune 4 series bed alignment guide with bed cable chain (with new bracket for the MAX )bed alignment bracket with an option for cable chain
"slightly" overengineered Anti Drag Cable Holder / Clip for Elegoo Neptune 3 + 4 SeriesBased on the linked remix I have completely redesigned the model. It is now fully compatible even with Elegoo Neptune 3 / 4 Plus and Max. No supports are needed anymore!
ULTRALIGHT Elegoo Spool Drawer Organizer | -38% filamentUpcycle your empty Elegoo spool! Ultralight version that saves the most filament. Features non-removable dividers that help organize any of your objects.
LIGHT Elegoo Spool Drawer Organizer | -33% filamentUpcycle your empty Elegoo spool! Lighter version that keeps the compatibility with the dividers (and adds half height dividers, perfect for screw organization, you can also fit 2 per divider).
Elegoo Neptune 3/4/Pro/Plus/Max Z Axis BraceNeptune 3 & 4 Z-Axis Brace Upgrade your setup with this sleek, high-rigidity Z-Axis Brace designed to eliminate frame flex and improve print quality during high-speed printing.
Elegoo Neptune 3 and 4 replacement filament spool holderA replacement filament spool holder for your Elegoo Neptune printer if your spool is too small for the original holder.
Boost your multicolor prints! Central filament sensor mount with filament clips for single / double spool configuration for Elegoo Neptune 3 / 4 Pro Plus MaxSimply press the mount into the 2020 extrusion (no additional screws required) and boost your (multicolor) prints!
Elegoo Neptune 3 and 4 webcam mount (clip on)A simple and strong clip on webcam mount for your Elegoo Neptune printer. Supported Printers (please compare the below image for other printers) Elegoo Neptune 3 Pro Elegoo Neptune 4 Elegoo Neptune 4...
SF 3x5015 Neptune 4 fan mod shroud - Optimized, enhanced with beacon/cartographer supportHalfManBear's shroud design but with multiple optimizations delivered in one package Thanks to Layer.Shifted for pointing out the airflow problems!
Neptune 3 / 4 Series Cable ChainThis chain system is trying to overcome some shortcommings of the original Chain system for the Neptune 4 Series.
Neptune 3 and 4 Swiveling Filament GuideNeptune 3 and 4 Series Swiveling Filament Roller Guide I have created a swiveling filament guide for the Neptune 3 and 4 Pro-Series, as well as the Plus and Max models.
Neptune 4/pro/Plus/Max Fanmod by layer.shiftedFits all Neptune 4 variants. This fan-mod targets to provide better cooling then stock while sticking loosly to the stock design language while integrating 2x 5015 Fans and 1x4015 Fan. There is a PDF with assembly instructions.
Logitech C270 mount for Neptune 4 SeriesThis version also slightly moves the camera back so it has more space around the metal bracket and a .step file is available for your remixing needs.
Neptune 4 (Max/Plus/...) dual Z axis belt modEasily reposition the gear wheels of dual z axis belt over the top gantry exchange 2 shaft coupler clamps with longer ones (D20L35 - 5x8) - pull the screw shafts little bit higher attach 2x pulley washer so the gear wheels do not interfere...
Neptune 4 tool holderdirty remix to suit my needs of having a tool holder on my neptune 4 remove the 2 screws holding the plastic mask in place and push it in place its not very sturdy but fine for snips and gluestick 2 versions one with a single mount point...
Elegoo Neptune 4/Pro/Max/Plus Fan Shroud V5As I'm currently not really motivated to further redesign the fan shroud, I thought to add the last prototype I made. I think I'll finish it in the future, but not right now.
Neptune 4 Belt Tension Stopper (4 / Pro / Plus / max)I went to iterate on the Belt Tensioners. The ones available do work just fine but i wanted to have them look more integrated into the Neptune. x-Axis: There is a 4 Pro specific version included.
cable chain z axis mount for neptune 4 plus/maxRedid the mount to make it way better to print. You need no supports just print it flat on it's back. The new file is the v3 I also raised it slightly so if you want to go full cable chain it will work now on the neptune plus and max :)...
Elegoo Neptune 4 (Pro/Plus/Max) improved Cable ClipAn improved clip for the Elegoo Neptune 4 (Pro/Plus/Max) X-Axis cable.
Elegoo Neptune 4 Pro/Plus/Max Front Top Reel / Spool MountAllows full-volume prints. (Does not fit base N4 model) Uses original M4 Hex screws for initial mounting.
Elegoo Neptune 4 MAX / Plus Y Axis Belt Tensioner StopperI just want to make the elegoo Neptune 4 max community lives a bit easier… i did not find on this site a Y axis belt tensioner stopper for my 4 max… but thankfully for the creators of thingiverse.com mk659 and SebastianRubner i was able to...

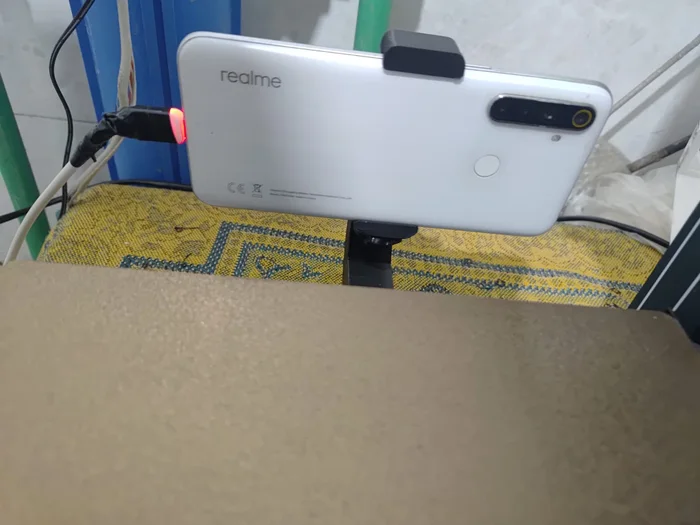

neptune 4 , 3 ,2 and ender 3 phone camera standThis remix allows you to use an old smartphone as a time-lapse or monitoring camera for your 3D printer. Designed to snap directly into the side frame rails without any extra screws or T-nuts.
