Laundry Detergent Cup Drain
- Creator (as listed at the source)
- Kernel Sanders
- Licence
- Creative Commons — Attribution — Share AlikeThe licence is listed by the source marketplace. SliSearch does not verify it.
- File types
- STEP STL
- Pricing
- Free
- Published
- Category
- Other House Equipment
- Likes
- 161
- Downloads
- 2,116
Overview
This design stores the laundry detergent cup for Tide and Gain brand liquid laundry detergent containers and drains excess leftover soap back into the container.
Single print design (Print in Place)
Fits North American Tide and Gain 4.43L (1.17 US gal/150 fl oz)containers (Proctor and Gamble brands)
Stop wasting laundry detergent by rinsing out the cup or making a mess in your sink.
Read the full description
It is designed for Tide and Gain (Proctor and Gamble) which has a drain opening size of approximately 28mm and the outer thread diameter is 35mm and has a 3mm thread pitch. If you have a different brand, it may work if the dimensions are close to this. The Sunlight brand containers have smaller drain openings so will not fit with this design.
UPDATE Jan 25, 2018
I've uploaded a .step file as per request.
Print Settings
Printer:
Monoprice Select Mini
Rafts: No
Supports:
Yes
Resolution: 0.2mm
Infill:
10-40%
Notes:
Supports are required to allow the cap to be printed in place. Use fragile supports so they are easy to remove from the small gap between the cap and the part.
Be sure to set your support material minimum overhang settings to 80% or so or else the drainage channel will be filled with support material and the print won't work! Print flat face down (see last photo)
How I Designed This
Fusion 360
I designed this with Fusion 360. I took photos of the threads and used the attach canvas feature to create the threaded cap. The rest was straight forward. I had some fun coming up with a drainage channel design that would print without creating excessive overhangs.
The goal was a single print with no post processing other than removing support material for the cap and the very top of the tray.
Category: Organization
Print this model with Slicience
- Download the model from the source page.
- Upload the file to Slicience and get a quote with Prinnu.
Similar models
Chosen by shared tags first, then category. Each one links to its own marketplace.
Laundry Detergent Cup Drain - New Tide CupI just made a very slight modification to an already fantastic design by davwilso.
Laundry Detergent Cup DrainThis design stores the laundry detergent cup for Tide and Gain brand liquid laundry detergent containers and drains excess leftover soap back into the container.
Soap DishSoap dish with centered drain
Sturdy Curvy Soap BoxA sturdy soap box which makes use of a fun curvy shape to create raised interior rails for the soap to sit on for quicker drying , and includes a strong built-in latch to help secure the case closed when you're ready to travel.
Soap Holder V1Keep your soap dry, clean, and long-lasting with a design that blends geometric minimalist aesthetics with practical drainage features.
Kitchen Sink - Soap & Sponge OragnizerA clean, organized sink area starts with smart design. This compact tray is built specifically for holding your soap bar and kitchen sponge while keeping excess water under control.
Improved Laundry Detergent Drip Tray, re-enforced with tray lipThis is a remix of a nice laundry cup drip tray design. I've made several of the originals, and found that the circular arms are prone to breakage, and will weaken and loosen over time.
Soap dish🧱 Modern Soap Dishes with Drainage Design. Both models are designed to drain water efficiently and keep your soap dry, extending its lifespan. 🔹 Left model: geometric grid pattern for an industrial look and solid drainage.
Mediterranean Bathroom Soap Dish
Corner Soap Dish - Wall Mounted Draining Soap HolderCorner Soap Dish - Wall Mounted Draining Soap Holder A simple and practical wall-mounted soap dish designed to make use of unused corner space in your bathroom or shower.
Modern Soap Dish with Removable Collection TrayI decided to have some fun with the Soap Dish challenge, and design something that hit both the form and function while being incredibly easy to print - and I like how it turned out enough that I'm going to use this in my own...
Soap/Sponge Tray with DrainageA soap/sponge tray which allow for airflow and fast drying.
Soap DishA remix of the original Voronoi soap dish, easier to print and probably a little more durable.
Travel Soap Dish, Neat and Compact when traveling and Using (Single colour version also included)This is my Travel Soap Box. This has been tried and tested on many of my travels by both myself and my son. The pictures are of my actual well travelled Soap Box, over 2 years old now.
Two Part Stylish Soap DishA sleek looking soap dish in two parts that can be used together or separately. Easy to clean. Prints without supports.
Sturdy soap and shampoo dish for your showerVery sturdy, carries soap or multiple shampoo bottles. Fits 18, 20, 22 and 25mm shower rails. Versions for left and right mounting available. Easy to print and easy to mount.
Sturdy soap and shampoo dish for your showerVery sturdy, carries soap or multiple shampoo bottles. Fits 18, 20, 22, 25 and 28 mm shower rails. Easy to print and easy to mount.
Hexagonal Soap/Sponge dish w/locking tabsTwo part print, can be printed in any material. Lower heat filaments might warp in the presence of hot water, probably not dishwasher safe unless done with low temperatures.
Modern Soap Dish with Drip InlayA modern and sophisticated designed dish for soaps with an integrated grate to collect dripping water. The standard dimensions are 175 mm x 110 mm x 20 mm .
Modern minimalist soap holderModern minimalist designed soap holder. Easy to print. 🚀 Support My Work & Supercharge Your Business & 3D Projects!
Grid Fin Soap Dish - SpaceX Falcon 9 StyleA soap dish inspired by the SpaceX Falcon 9 grid fins. This is my take on the Falcon 9 grid fin, simplified and modeled into the shape of a soap dish.
USS Dripper – Universal Liquid Transfer FunnelUSS Dripper – Universal Liquid Transfer Funnel No space for waste. The USS Dripper is a two-part funnel designed to make transferring the last remains of thick fluids (like laundry detergent) from one bottle to another easy, clean, and...
Soap Tray with DrainageA soap tray with 54 bumps which allow for maximal airflow and fast drying.
Soap HolderA clean, low-profile soap holder designed for sink edges. Geometric shape with chamfered edges on all sides — simple and intentional. 10 × 7 cm footprint, 1.2 cm height. Sits flat, stays put.
Shower/Soap Shelf (wall mounted)

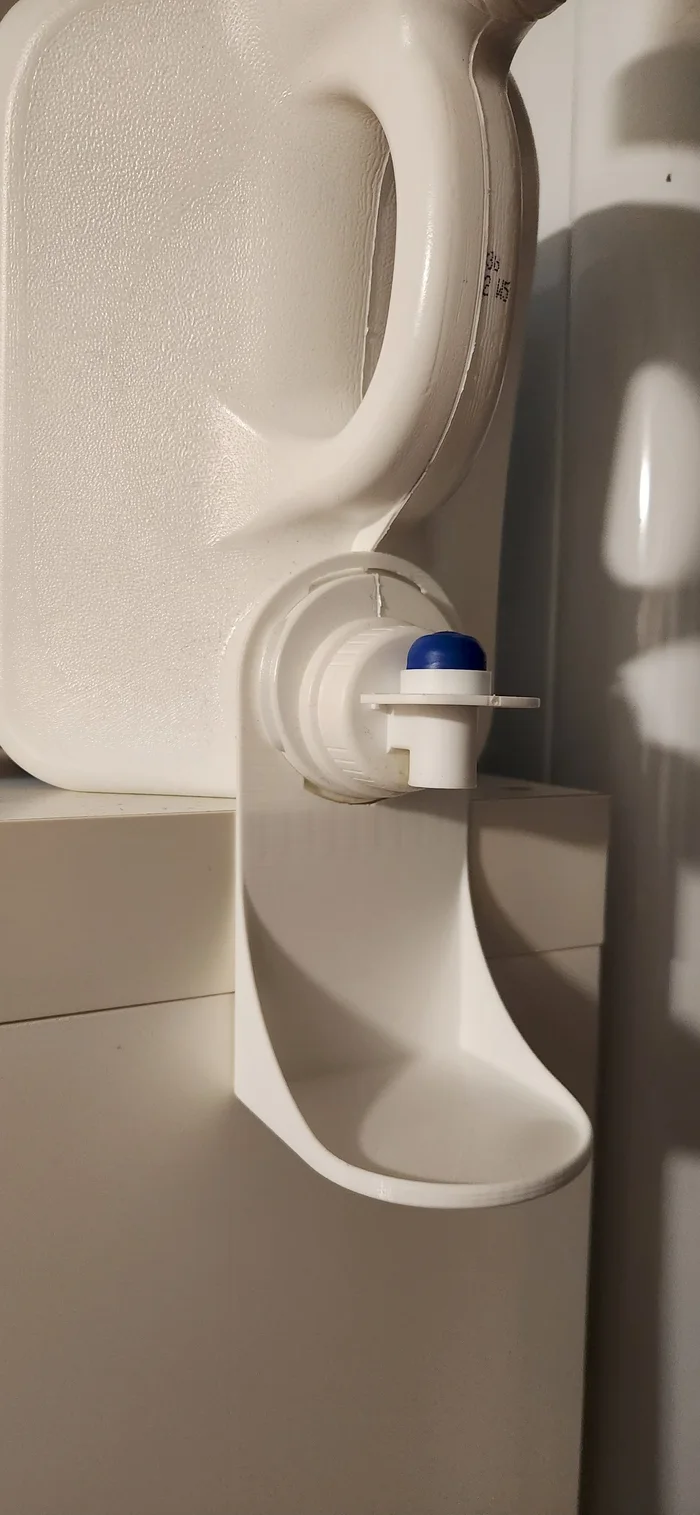

Costco Kirkland Signature UltraClean Laundry Cup/Drip CatcherCup Holder/Drip Catcher for the Costco Kirkland Signature UltraClean 146 Loads 5.73L Laundry Detergent Bottle
