cd rom stepper motor linear rail system
- Creator (as listed at the source)
- tibuck
- Licence
- Creative Commons - Attribution - Non-CommercialStated at the source marketplace; SliSearch does not verify licences.
- File types
- STL
- Pricing
- Free
- Published
- Category
- Engineering
- Likes
- 1,005
Overview
DIY cd rom stepper motor linear rail First off, a huge shout out and thanks to Mr Darwin for his great idea on using mouldable epoxy for the lead screw bolt. Please have a look at his YouTube channel for lots of great idea's and his projects. Things you will need besides a printer and filament lol. 1:) Hand mouldable Epoxy putty stick. 2:) Paper clip. 3:) Cd rom or DVD rom stepper motor. 4:) 3mm rod Found with stepper motor in Cd rom.) Make a little ball of Mouldable Epoxy and press in the cup of slider nut, scrape off any over flow, align center of cup with at least two threads of the lead screw and lightly press down to form lead screw ridges in the epoxy, remove slider nut and let epoxy to set. Clean threads if needed Unfold paper clip and cut 10 to 12 mm length and straiten best as possible. assemble the linear rail, and push the paper clip under the lead screw and into the hole in the slider nut. Paper clip wire is to hold tension between the slide nut and lead screw. Wire stepper and let your imagination Spark. Their are two versions of the slider nut, one has the 3mm shaft size slightly bigger depending on your printer tolerance. If you need mounting points feel free to ask .
Print this with Prinnu
- Download the model file from the source page. SliSearch moves no files.
- Upload the file at slicience.com/quote. Prinnu quotes it in minutes.
Similar models
Chosen by shared tags first, then category. Each one links to its own marketplace.
Mostly Printed CNC "MPCNC" BURLY C-23.5mm ODNewer version here, #Mostly Printed CNC / Multi-Tool These parts are for *23.5mm* OD conduit. 25mm OD here- 25.4mm OD here- Changelog 10/15/18 - BURLY Center Revisions 3/19/18 - New foot design.
Mini Plotter CNCMini Plotter, Laser engraver, CNC - decision is Your's Few words of explanation. 1. I used a steel rods from DVD player 3mm in diameter(some are good some better, longer better :P) 2.

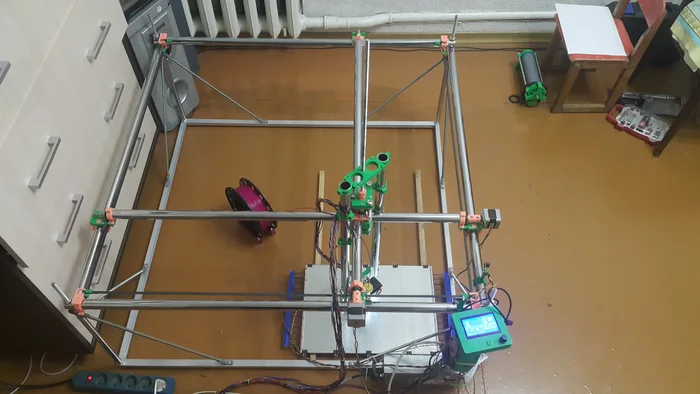

Huge Cheap Home CNC (#hchcnc)Project: Huge Cheap Home CNC (#hchcnc) ================================= (continue of my Project: some files listed can be found there) The best guide for beginners: just start already ;-) ..and don't forget to press Like button ;-) Design...
