"OugleSauce" - VOC, Carbon circulation filter for Creality K1/K1C/K1 Max
Supports required for bracket portion of “Duct” part. Other parts should be good with no supports anywhere.
- Creator (as listed at the source)
- Nicorn
- Licence
- Creative Commons — AttributionStated at the source marketplace; SliSearch does not verify licences.
- File types
- STEP
- Pricing
- Free
- Published
- Category
- Creality Parts & Upgrades
- Likes
- 256
- Downloads
- 936
Overview
Printing
Supports required for bracket portion of “Duct” part. Other parts should be good with no supports anywhere.
BOM
- Magnets 6х3 mm - 19 pcs
Read the full description
- “Voron” heated inserts (M3, outer D 5, length 4) - 5 pcs
- M3х10 screws - 4 pcs
- Activated charcoal (0.5 liters approx)
Assembly
Insert heated inserts (locations are marked on pictures)
Install (superglueing recommended) magnets to all places for magnets you see. Remember to check for polarity!
Place "Base cover" onto fan, then place “Base” onto base cover and screw everything together using M3x10 (3 screws).
Install “Duct” using one stock screw and one M3x10 (to fix to “Base” part).
Fill "Cartridge" with charcoal, close cover.
Install assembled cartridge onto base.
Profit!
Optional - Between Base part and cartridge there's a provision for additional thin paper/non-woven fabric filter. If you have issues with your charcoal being too dusty - that's the fix for you.
Tested (V1 model on real life photos) and working well, no ABS smell after overnight print.
V2 (shared here) should perform about the same (it has improved looks, joints and tolerances over v1).
Please share your prints!
P.S. Purpose of such duct design - to have possibility to install Active heater for chamber at the end of it. Step is attached so feel free to design heater holder.
Print this with Prinnu
- Download the model file from the source page. SliSearch moves no files.
- Upload the file at slicience.com/quote. Prinnu quotes it in minutes.
Similar models
Chosen by shared tags first, then category. Each one links to its own marketplace.
Creality K1 Back Fan Carbon FilterDespite printing with non-toxic filaments, there is a noticeable smell, as well as a scratchy throat. That's why I've designed a filter where you can use readily available carbon filters for cooker hoods.
Creality K1's High Flow Activated Carbon Filter 130mm3D printing is known to release harmful compounds (VOC - Volatile Organic Compounds) in the air. Several studies have shown that activated carbon is effective in removing these compounds.
Creality K1-K1C Active Carbon FilterPrinted in PETG with a TPU gasket. Used 4 M3 nuts to be inserted into the base with a pause at layer 20. No Supports. Attach the base to the rest of the body with 4 M3x12 screws, inserting the gasket between the two parts.
Creality K1, K1c, K1 Max & K2 SE Door Hinges Geared Print in PlaceWhy you need this: This is a beautiful print in place set of hinges that will enable your door to open completely.
270 Degree Geared Hinges (V2) for K1/K1 Max/K1C. Easy print option. Not print in place.These Hinges allow K1 series doors to open 270 degrees removing the 90 degree shatter risk of the stock Creality design.
Better Angle Camera Mount for Creality K1 K1C K1MaxThe camera on my k1c was not perfectly centered so I redesigned the bracket with an angle of 10 degrees.
K1 Series - Riser V2Instructions can be found in the folder of this project (Other Files). Versions of the Riser: K1 Series - Riser V1 K1 Series - Riser V2 Add-on for the Riser K1 Series Chain Riser K1 Series Spool Holder for...
Creality K1/K1 Max/K1C bed levelling risers/shims0.1 to 1.2 mm shims to level the bed of your K1/K1 Max/K1C without destroying top level of the bed
PROWIPER for Creality K1 SeriesFEATURES Previously known as Advanced Nozzle Wiper, this is not just a simple wiper mount - it is a complete rewrite of the nozzle wiper code, with the following features: Adds advanced nozzle wiping functionality to Creality K1, K1C, K1SE...
The Skeletor Collection a Creality K1/K1 Max/K1C Cooling SolutionWelcome to The Skeletor Collection —discover the evolution of the Skeletor project, explore each iteration’s unique enhancements, and find out how you can get involved. 📖 Want the full story?
Cyclops ExtruderCyclops Guide by ModBot Thank you for the great video Latest Update 22 September 2024: -PTFE tube connector -stronger tension arm Exciting News: Cyclops Extruder is Now in Open Beta!
Creality K1 silent toolhead covers (5015 or 5020 fan)Removed the ugly circular overhang at the bottom Changed duct geometry for better airflow alignment Supports inside the ducts are no longer needed These toolhead covers allow to install a 5015 or 5020 part cooling fan on Creality K1...
Nevermore V6 Carbon Filter- Easy Lid RemixRemix that replaces the complicated jalousie door with a simple lid+grate, and adjusts the plenum lid for an easier fit.
Creality K1 / K1C / K1 Max Spool RollerReplacement Rolling Spool Holder for the Creality K1, K1C and K1 Max.
Creality K1C/K1/Max Silicone Nozzle CleanerAdd flexibility to your nozzle cleaner,
Cartographer Mounts (Bed Level And First Layer Fix) For Creality K1 SeriesStruggling with inconsistent first layers, wavy patterns, gaps between lines, nozzle digging into the build plate or leveling related error codes? Been told to adjust your z offset? Looked at your bed mesh and tried to adjust the bed?
K1(C-Max) Bowden Tube Guide for Nu-K Riser (et similia)I liked a lot the original print but I wanted the tube at the same height of the hole in the back of the lid riser (in my case the Nu-K that has it placed ~20mm higher than the chain).
creality K1/K1 Max and K1C/K2 plus screen coverhere is a screen cover for the K1 and K1 Max and K1C and K2 plus supports maybe required all depends on how well your printer is calibrated i put a slight chamfer on it so that the door does not catch
Creality K1/K1 Max/K1C Filament Sensor Side Mount Sunlu S2Requires 2x M3x8mm cone bolts, but tbh any M3x8-10mm bolt will do :) Bowden tube is stock, filament sensor bolts are stock! Designed for K1, but should work for any Creality K1 family printer!
Creality K1 0.2mm Nozzle Profiles (for minis) (Orca Slicer)Y'all know that FDM printers are not ideal for printing minis but hey, it's possible, and you can get pretty damn good prints if you tune it correctly.
Creality K1/K1C/K1 MAX Side Spool inspired by the K1C prerelase photos.Stylish side mount spool holder for the K1/K1C/K1 MAX styled after the K1C prerelease photos. Hardware needed: 2x M3 x 16mm 1x M3 x 20mm You will also need the stock spool spindle.
Tool for modifying the X-axis carriage (for K1, K1C, K1MAX)Про то как пользоваться этим приспособлением я рассказываю в этом видео: Если у вас закусывает верхнюю втулку оси X, эта 3D модель + наждачная бумага поможет решить вам часть этой проблемы.
K1 Max CFS w/ Orca Config & Test Print 7/9/25 UpdateWas having issues getting Orcaslicer to work nicely with the K1 Max after the upgrade kit installation. I was able to get it to talk to the printer, and get the initial filament loaded but any swaps were done manually.
Filtra – Filter for Voron V0Filtra – Compact Recirculating Carbon + HEPA Filter for Voron V0 (English) A compact, side-mounted in-chamber filter with active recirculation for the Voron V0.
Creality K1 Fan Duct - Skeletor MK7 - Improved Heat Insert FitImproved fit for 4mm (Diameter) M3 Heat Set Threaded Insert
K1 Max K1C K1 SE K1 to Manta M8PPrinted in PC-ABS with rafts to reduce warping.
Modular Cooling Fan Mount for FYSETC Catalyst‑KThis is a modular cooling system designed specifically for the FYSETC Catalyst‑K motherboard . The mount consists of two parts: Main Fan Mount Body Interchangeable Blower Ducts 3‑Driver Duct — cools Motor E1 , Motor E0 , and Motor...
K1 / K1 max cable chain deleteAfter removing the terrible cable chain, best to have some support for the cable still. Didn't like how many of the other options didn't allow for easy removal of the shroud.
Creality K1 & K2 Series Top Spool Holder - Overhead TPU ModCreality K1 & K2 Series Top Spool Holder - Overhead TPU Mod This direct overhead spool holder modification is engineered for the Creality K1 series (K1, K1C, K1 Max, K1 SE) and the K2 series (K2) to optimize the filament feed path for...
K1C K1 K1MAX rear filter replacement , fits HEPA filterThis fits a small HEPA style filter , It has reportedly better filtration than simple carbon pellets. It takes up about 35mm from the rear of the printer after it is inserted into the rear panel filter portion can be found...
EBB42 Gen2 PCB to K1 Series Printhead with CartographerThis was made for using the EBB42 Gen2 board on a K1 series. The cable holder is for using the stock K1 cable with a XT30U (2+2) soldered with heat shrink.

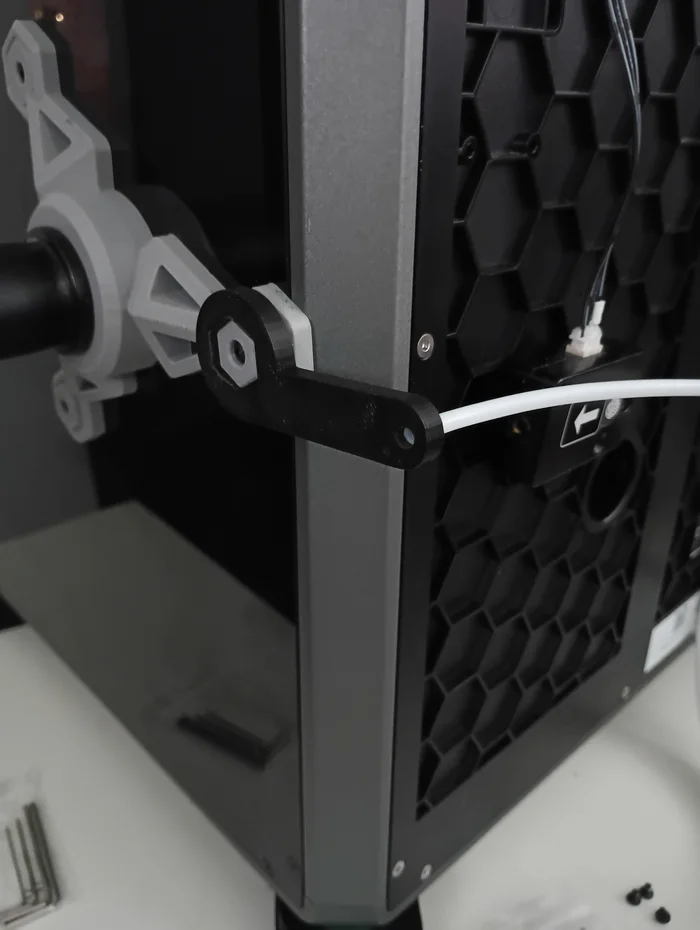

Creality K1 & K1C Barrel Base Filament GuideBarrel Base filament guide for Creality K1 & K1C printers.
